联众高科>>产品列表>>Ribbon Cable / Pin Header & Female Header>>2.54mm

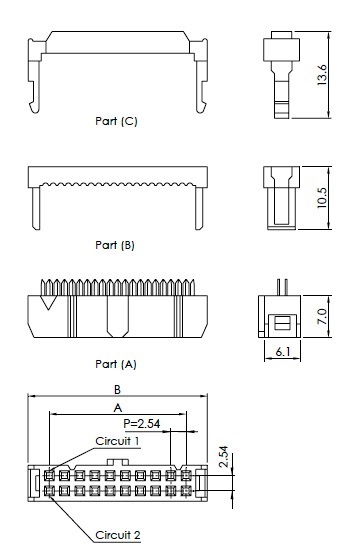

7302P IDC Plug Housing

Specifications
Current rating: 3A AC/DC Max.
Voltage Range: 250V AC,DC
Withstand Voltage: 500V AC/Minute
Contact Resistance: 20 mΩ Max. before environment test
Insulation Resistance: 1000 MΩ Min.
Temperature Range: -40℃ to 105℃
Applicable Wire: AWG 28 Flat Cable
Reference
Mates with 7303,7304 Shrouded Headers
