联众高科>>产品列表>>Wire to Board Connector>>1.00mm

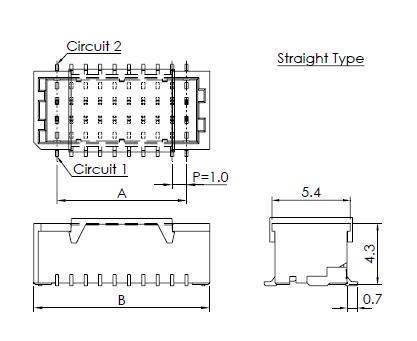

1011P SMT Type-D

Specifications
Current rating: 1A AC,DC Max. (AWG 28)
Voltage Range: 50V AC,DC
Withstand Voltage: 500V AC/Minute
Contact Resistance: 20 mΩ Max. before Environment test
Insulation Resistance: 100 MΩ Min.
Temperature Range: -25℃ to 85℃
Reference
Mates with 1010S Housing
