联众高科>>产品列表>>Wire to Board Connector>>1.25mm

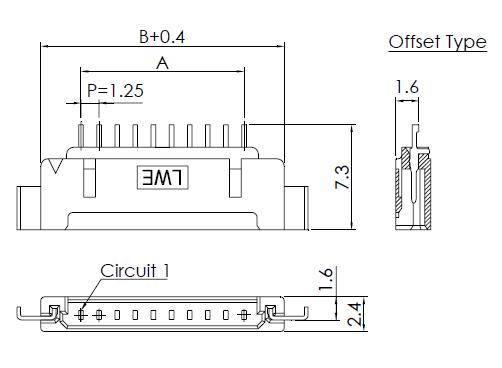

1242P SMT-Offset

Specifications
.Current rating: 1A AC,DC Max. (AWG 26)
.Voltage Range: 150V AC,DC
.Withstand Voltage: 500V AC/Minute
.Contact Resistance: 30 mΩ Max. before Environment test
.Insulation Resistance: 500 MΩ Min.
.Temperature Range: -25℃ to 85℃
Reference
.Mates with 1240S Housing
