联众高科>>产品列表>>Wire to Board Connector>>2.00mm

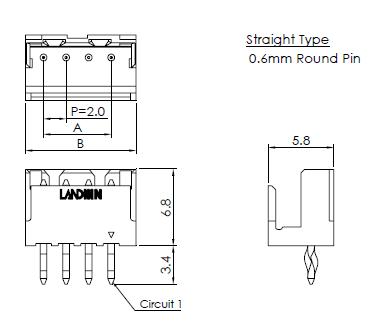

2021PXXA DIP Header

Specifications
.Current rating: 4A AC/DC Max. (AWG 22)
.Voltage Range: 125V AC,DC
.Withstand Voltage: 1000V AC/Minute
.Contact Resistance: 10 mΩ Max. before Environment test
.Insulation Resistance: 1000 MΩ Min.
.Temperature Range: -30℃ to 105℃
Reference
.Mates with 2020S Housing
