联众高科>>产品列表>>Wire to Board Connector>>2.54mm

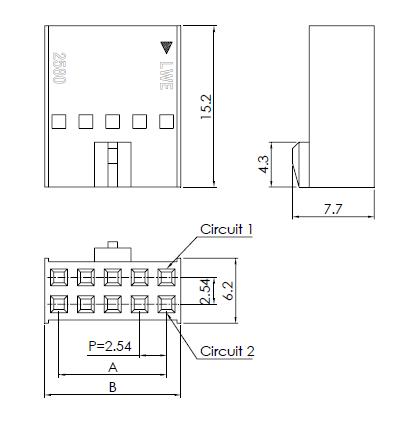

2580S Dual-Row Housing

Specifications
Current rating: 3A AC/DC Max. (AWG 22)
Voltage Range: 350V AC,DC
Withstand Voltage: 1000V AC/Minute
Contact Resistance: 20 mΩ Max. before environment test
Insulation Resistance: 1000 MΩ Min.
Temperature Range: -55℃ to 125℃
Reference
Mates with 2581P,2582P Headers
Use with 2583T Terminal
Material: PBT 94V-0, Black
