联众高科>>产品列表>>Wire to Board Connector>>2.54mm

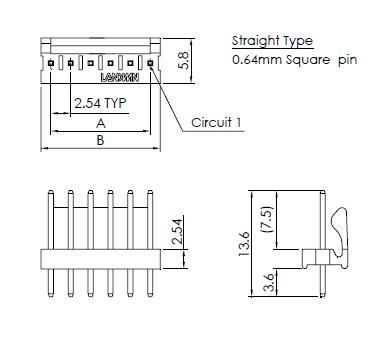

2631P DIP Header

Specifications
Current rating: 4A AC/DC Max. (AWG 22)
Voltage Range: 250V AC,DC
Withstand Voltage: 750V AC/Minute
Contact Resistance: 6 mΩ Max. before environment test
Insulation Resistance: 5000 MΩ Min.
Temperature Range: -55℃ to 105℃
Applicable PC Board Thickness: 1.6mm
Reference
Mates with 2630R IDC Plug
