联众高科>>产品列表>>Wire to Board Connector>>3.00mm

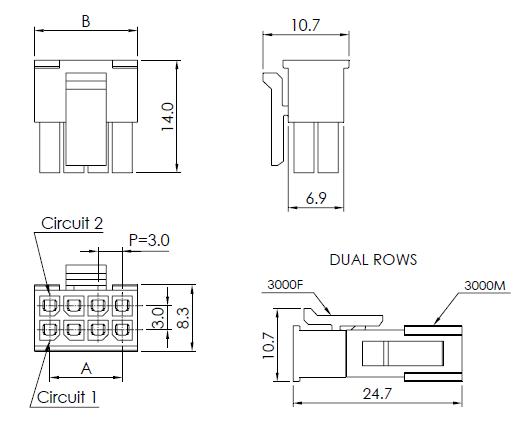

3000F Plug Housing Dual-row (Type-1)

Specifications
Current rating: 5A AC/DC Max. (AWG 20)
Voltage Range: 250V AC,DC
Withstand Voltage: 1500V AC/Minute
Contact Resistance: 10 mΩ Max. before environment test
Insulation Resistance: 1000 MΩ Min.
Temperature Range: -40℃ to 105℃
Reference
Mates with 3000M Receptacle Housing
Use with 3003TF Terminal
