联众高科>>产品列表>>Wire to Board Connector>>3.68mm

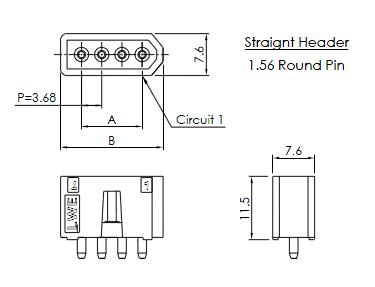

3681P DIP Header

Specifications
Current rating: 6A AC/DC Max. (AWG 18)
Voltage Range: 250V AC,DC
Withstand Voltage: 1000V AC/Minute
Contact Resistance: 10 mΩ Max. before environment test
Insulation Resistance: 1000 MΩ Min.
Temperature Range: -55℃ to 105℃
Reference
Mates with 3680F Plug Housing
