联众高科>>产品列表>>Wire to Board Connector>>4.00mm

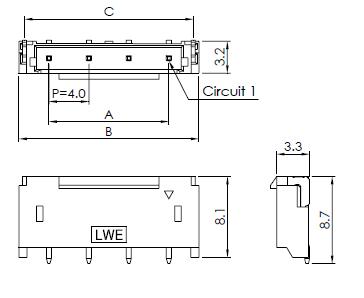

4002P Header (D Series)

Specifications
Current rating: 1A AC,DC (AWG 22)
Voltage Range: 600V AC,DC
Withstand Voltage: 1800V AC/Minute
Contact Resistance: 10 mΩ Max. before environment test
Insulation Resistance: 1000 MΩ Min.
Temperature Range: -25℃ to 85℃
Reference
Mates with 4000S Friction-lock Housing
