联众高科>>产品列表>>Wire to Board Connector>>5.08mm

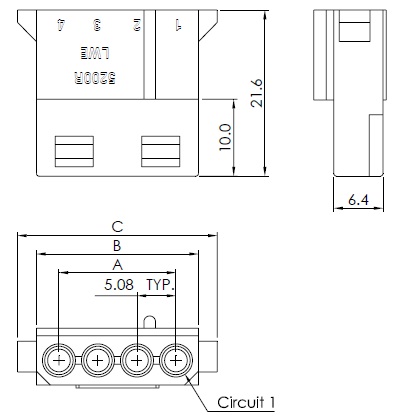

5200R Plug Housing

Specifications
Current rating: 8A AC/DC Max. (AWG 16)
Voltage Range: 250V AC,DC
Withstand Voltage: 1500V AC/Minute
Contact Resistance: 10 mΩ Max. before environment test
Insulation Resistance: 500 MΩ Min.
Temperature Range: -55℃ to 105℃
Reference
Mates with 5200P Receptacle Housing,
5201P,5202P Headers
Use with 5203T Terminal
