联众高科>>产品列表>>Wire to Board Connector>>5.08mm

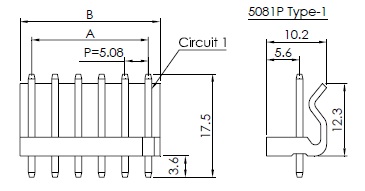

5081P Headers Type-1

Specifications
Current rating: 7A AC/DC Max.
Voltage Range: 250V AC,DC
Withstand Voltage: 1500V AC/Minute
Contact Resistance: 10 mΩ Max. before environment test
Insulation Resistance: 1000 MΩ Min.
Temperature Range: -40℃ to 105℃
Applicable PC Board Thickness: 1.6mm
Reference
Mates with 5080S Type-1 or Type-A Housing
