联众高科>>产品列表>>Wire to Board Connector>>6.20mm

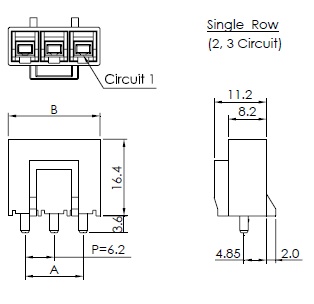

66775P Straight Header Type-A

Specifications
Current rating: 20A AC/DC Max. (12 AWG, 2-Circuit)
Voltage Range: 600V AC,DC
Withstand Voltage: 2000V AC/Minute
Contact Resistance: 7 mΩ Max.
Insulation Resistance: 1000 MΩ Min.
Temperature Range: -25℃ to 90℃
Applicable PC Board Thickness: 1.6mm
Reference
Mates with 66774F Type-A, Type-B Plug Housing
