联众高科>>产品列表>>Wire to Board Connector>>6.20mm

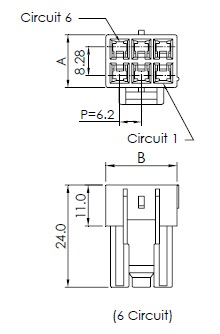

66774F Plug Housing Type-B

Specifications
Current rating: 20A AC/DC Max. (12 AWG, 2-Circuit)
Voltage Range: 600V AC,DC
Withstand Voltage: 2000V AC/Minute
Contact Resistance: 7 mΩ Max.
Insulation Resistance: 1000 MΩ Min.
Temperature Range: -25℃ to 90℃
Reference
Mates with 66775P Series DIP Header
Use with 66774TF Terminal
Use with 66773A Type-A Retaine
