联众高科>>产品列表>>Wire to Board Connector>>7.92mm

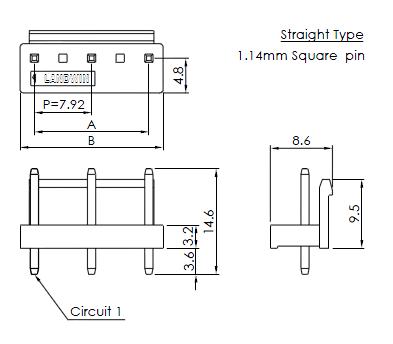

3961P DIP Header Type-NB

Specifications
Current rating: 7A AC/DC Max.
Voltage Range: 250V AC,DC
Withstand Voltage: 2500V AC/Minute
Insulation Resistance: 1000 MΩ Min.
Contact Resistance: 10 mΩ Max. before environment test
Temperature Range: -40℃ to 85℃
Applicable PC Board Thickness: 1.6mm
Reference
Mates with 3960S Housing
