联众高科>>产品列表>>Wire to Board Connector>>7.92mm

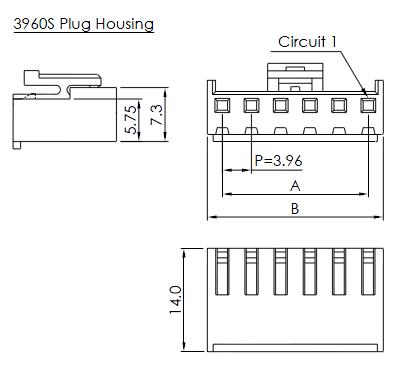

3960S Housing SGL

Specifications
Current rating: 7A AC/DC Max. (AWG 18)
Voltage Range: 250V AC,DC
Withstand Voltage: 1500V AC/Minute
Insulation Resistance: 1000 MΩ Min.
Contact Resistance: 10 mΩ Max. before environment test.
Temperature Range: -25℃ to 85℃
Reference
Mates with 3961P,3962P Headers
Material: Nylon 66 94V-0, Natural
