联众高科>>产品列表>>Wire to Wire Connector >>2.50mm

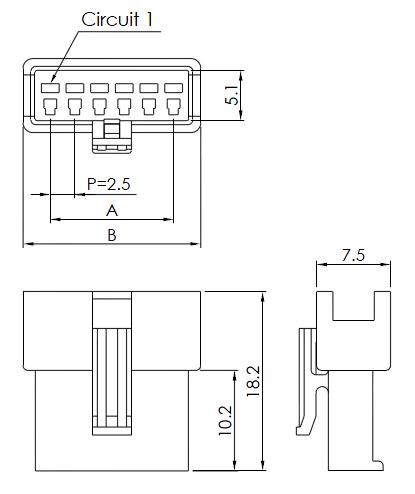

2550M Receptacle Housing

Specifications
.Current rating: 3A AC/DC Max. (AWG 22)
.Voltage Range: 250V AC,DC
.Withstand Voltage: 1500V AC/Minute
.Contact Resistance: 20 mΩ Max. before environment test
.Insulation Resistance: 500 MΩ Min.
.Temperature Range: -25℃ to 85℃
Reference
.Mates with 2550F Plug Housing
.Use with 2550TM Terminal
