联众高科>>产品列表>>Wire to Wire Connector>>4.50mm

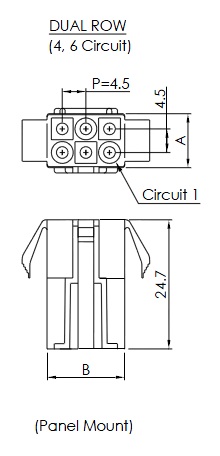

4510M Receptacle Housing Dual Row

Specifications
Current rating: 10A AC/DC Max. (16 AWG, 2~4 Circuits)
Voltage Range: 300V AC,DC
Withstand Voltage: 1500V AC/Minute
Contact Resistance: 7 mΩ Max.
Insulation Resistance: 1000 MΩ Min.
Temperature Range: -25℃ to 90℃
Reference
Mates with 4510F Plug Housing
Use with 4510TM Terminal
Nylon66 94V-0, Natural
