联众高科>>产品列表>>Wire to Wire Connector>>6.35mm

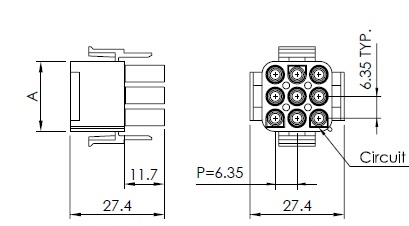

6350F Plug Housing 3-Row

Specifications
Current rating: 10A AC/DC Max. (14 AWG)
Voltage Range: 600V AC,DC
Withstand Voltage: 5000V AC/Minute
Contact Resistance: 10 mΩ Max.
Insulation Resistance: 1000 MΩ Min.
Temperature Range: -55℃ to 105℃
Reference
Mates with 6350M Receptacle Housing
Use with 6353TF Termina
